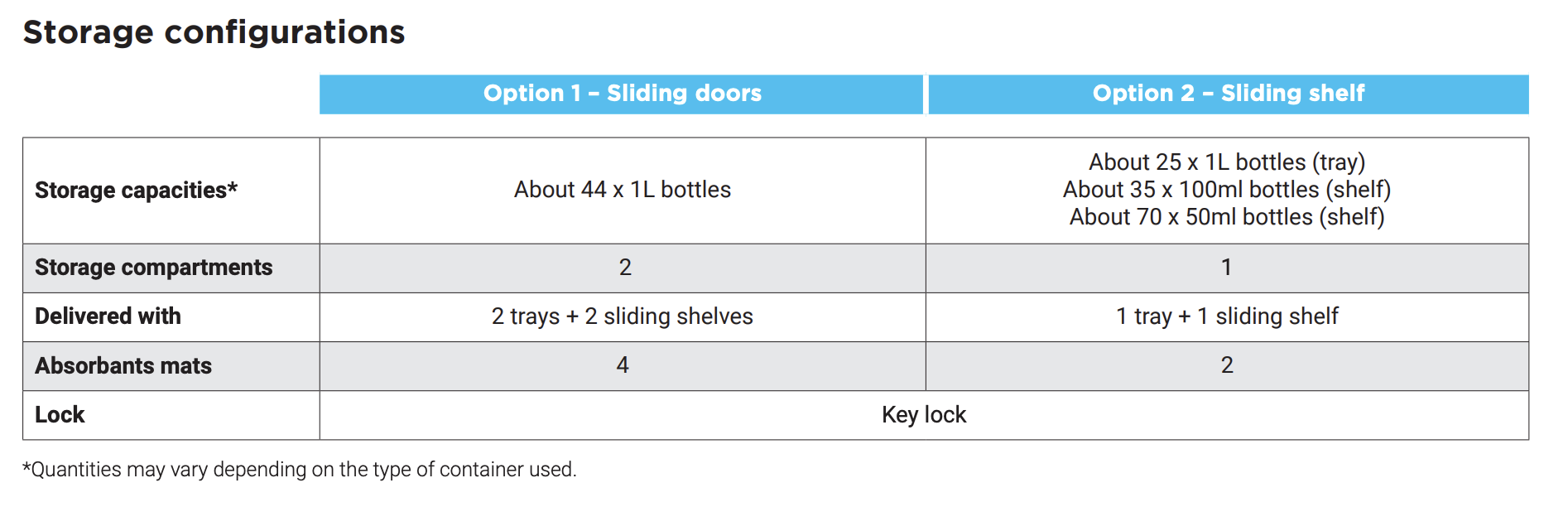

| Storage Capacity | Option 1 : Sliding Doors Option 2 : Sliding Shelf |
|---|---|

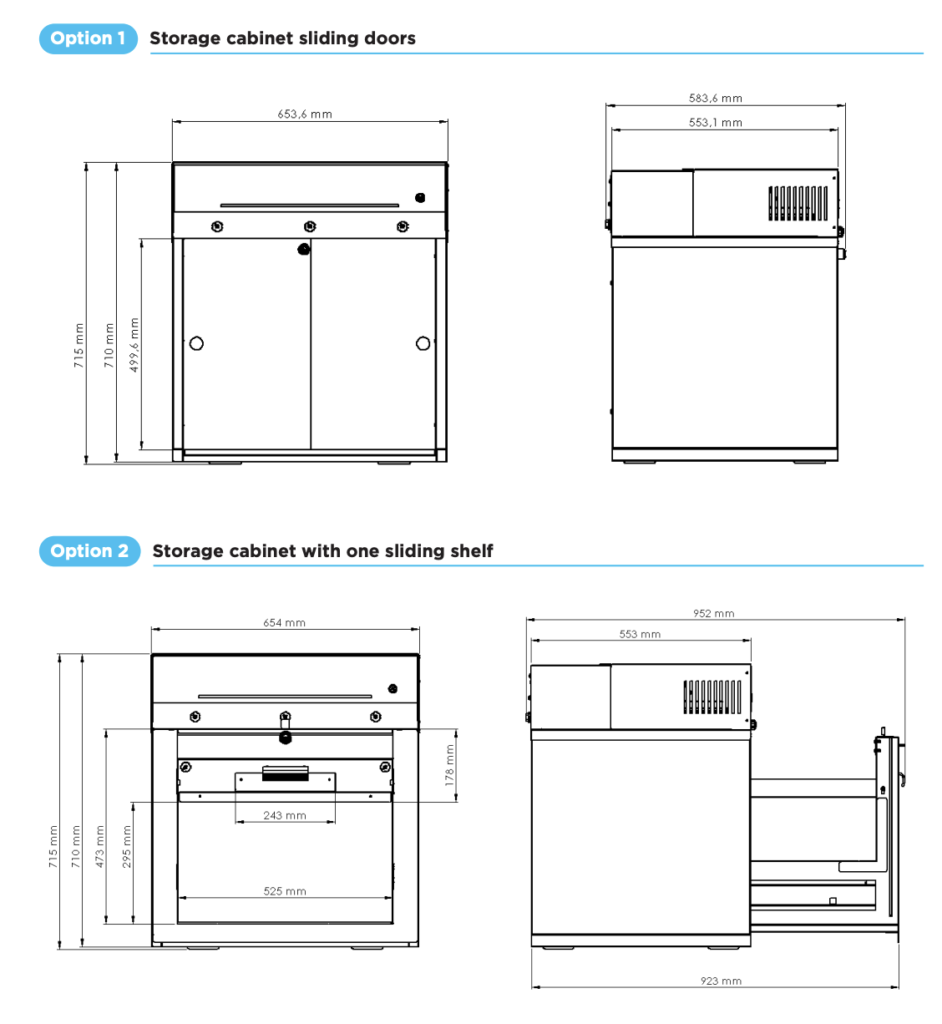

| External dimensions (L x D x H) (mm) | 654 x 583 x 715 |
| Volume of air treated | 11 m3/hr |
| Voltage/Frequency | Connection to main power : 240 V – Internal circuit : 24V-DC/50-60 Hz |
| Enclosure Material | Doors in clear transparent chemical resistant acrylic and body in electro-galvanized steel coated with anti-acid polymer |
| Filtration Modules | Made of injected Polypropylene |
| Compliance with applicable world safety standards | AFNOR NFX 15-211:2009: France – JG/T 385-2012 : China – SEFA 9 : USA – BS 7989 : England – DIN 12 927 : Germany – EN 1822 : 1998 (HEPA & ULPA) – CE Marking |
| Filter Technology | High efficiency molecular filter for storage of liquid chemicals |
| Safety Alerts | Patented "Smart" Technology consisting of safety alerts by LED pulsation and coded sounds expressing possible fan failure, opened door and filter saturation |
| Molecular filters efficiency | <1% of the PEL-TWA of the handled chemicals released downstream the filtration system |
| Filter capacity | Erlab chemical listed of over 600 chemicals indicating the molecular filter capacity at 1% of the PEL-TWA of the chemicals. |
| Safety Alert System | Patented "Smart" technology consisting of safety alerts by LED pulsation and coded sounds to express the fan failure, door left open or filter saturation/ breakthrough |
| Filters Saturation detectors (option) | Molecode S for saturation detection by solvents |
| Tests Certificates and Reports | Intertek (NFX 15-211) |
| Safety Lock | 1 lock |
| Accessories | (Optional) |
| Carbon Filters for gases and vapours | HF2 4AS : for organic vapours (acid vapours secondary) |
| HEPA filter for powders | HEPA H14 filtration efficiency : 99.995% according to MPPS method, EN1822 standard |
| Prefilter | 40% filtration efficiency for particles >0.3 micron |
Erlab 632B Smart Chemical Storage Cabinet
Erlab 632B Smart Chemical Storage Cabinet is the bench type cabinet, it can be placed on top or under the laboratory bench. 632B Smart chemical storage cabinet consist of drawer and a sliding tray
